From the Poches of The house for Dr Batholomeuez it is evident that the lower spaces of the building are fairly open. The ground floor displays that there is free circulation and openness to light. Within this respective floor there is also evidence of a balance between enclosed space and the openness of the courtyards. The openness is not found in the top level; however this level does have exception access to light. The section displays the shift of program between the open spaces and the solid forms; it also establishes the behavior of the open space, the enclosure and light.

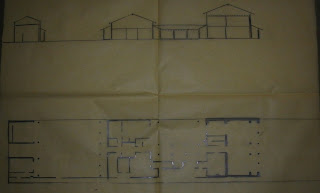

Final Ground Floor Poches of the House for Dr. Bartholomeusz

Final First Floor Poches of the House for Dr. Bartholomeusz

Final Section Poches of the House for Dr. Bartholomeusz

Program

The house for Dr Batholomeuez is made up of three different villas, courtyards and a corridor, All three of these elements define this. The program is the most intricate element within this building; it follows the corridors, the courtyard areas and the enclosed built environment zones.

*All the patterns identified in the diagram all represent the same thing ( program) however the various patterns defines the separate pathways of program.

Enclosure through vegetation

Gregory Bawa’s building is surrounded with vegetation. This divides the villas apart from one another. The vegetation also play a role on elements that include the structure, circulation and program.

Structure

The structure within Geoffrey Bawa’s House for Dr Bartholomeusz is contributed by the walls and column. This element is an important idea within the house as it gives rhythm around the enclosed areas and the courtyard. The structure also assists air movement and circulation.

Privacy and public

Gregory Bawa’s building has public and private interaction . There are specific parts of the house which are exclusively private; there are also zones where it is semi private and parts open for the public. This element is also affected by the structure, program, enclosure and circulation of the building.

Geometry

Throughout the house for Dr Batholomeuez there is a dominate use of squares and rectangles that defines, there are also parts defined with circles. All the oblong shapes vary in sizes and can be distinguished between the villa, courtyards and garden space.

The circulation

The House for Dr Bartholomeusz has three main paths of circulations, one of them is along the longitudinal vertical path the other one follows the long side corridor and the final one follows up to the top floor. There would also be a number of minor paths that haven’t been identified which interweave with each other.
*All the patterns identified in the diagram all represent the same thing (circulation) however the various patterns defines the separate pathways of circulation.

Built environment vs Openness.

There is a lot of open areas within the house for Dr Batholomeuez. The outdoor areas stand between the three villas which are solid forms that have mass and context. The openness of the site against the buildings affects the circulation and the openness to light
